Stopper Bolt with Built-in Switch

Stopper Bolt with Built-in Switch
2 tasks with 1 device

  • Housing a high-accuracy built-in switch in a stopper bolt
  • Realization of compact machine size by reducing the number of parts
  • The built-in switch is cartridge type




2 tasks with 1 device.
Housing a high-accuracy built-in switch in a stopper bolt.

Limit switch

Conventional way

Conventional way

Stopper Bolt with a Built-in Switch

Improved way

No need of dogs and stopper bolts.
Compact machine design

Improved way

Maintenance cost is greatly reduced by applying cartridge type

The cartridge typeWhen the cartridge type switches need to be replaced, the process can be done by screwing out only the used cartridge from the switch case and fit the new one into it.

This can eliminate the task of realignment of the signal point.

Even at initial setting, set the switch case first to avoid twisting the cable.

Applications

  • Forward / backward
    end check

    Forward / backward end check

  • Angled touch

    Angled touch

  • Weight detection

    Weight detection

Specification

Output mode A : Normally open / B : Normally close
Repeatability 0.01mm
Withstand load * 5000N
Impact resistance * 0.4J
Pretravel Various value : 0~0.5mm
Movement differential 0
Contact force Various value : 1~4N
Contact life time * 10 million
Operating temperature 0~80deg C (Ice-free)
Temperature drift 0
Maximum operating speed 5m/min
Contact rating DC5V~DC24V 20mA (MAX) Resistance load

* STH Excludes

rohs compliant

Products / Download

unit : mm
Products
unit : mm

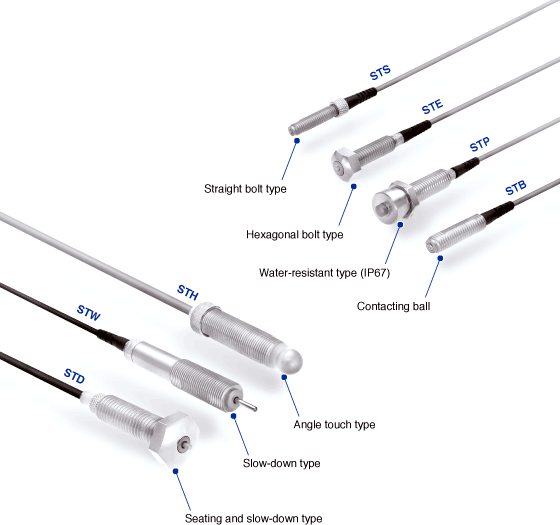

Straight touch type STS / STE / STP
  Product name Output mode Size
Straight bolt type STS060PA A:NO M6
STS060PB B:NC M6
STS080PA A:NO M8
STS080PB B:NC M8
STS100PA A:NO M10
STS100PB B:NC M10
Hexagonal bolt type STE060PA A:NO M6
STE060PB B:NC M6
STE080PA A:NO M8
STE080PB B:NC M8
STE100PA A:NO M10
STE100PB B:NC M10
Water resistant type STP080UA A:NO M8
STP080UB B:NC M8
STP100UA A:NO M10
STP100UB B:NC M10
STP080DA A:NO M8
STP080DB B:NC M8
STP100DA A:NO M10
STP100DB B:NC M10
Angled touch type (Contacting ball type) STB
  Product name Output mode Size
STB080A A:NO M8
STB080B B:NC M8
STB100A A:NO M10
STB100B B:NC M10
Angled touch type STH
  Product name Output mode Protective
structure		 Size
STH121A A:NO IP67 M12x1
STH121B B:NC IP67 M12x1
1 signal slowdown, plunger type STW
  Product name Output mode Stroke Size
STW0600A A:NO 2.5mm M6
STW0800A A:NO 2.5mm M8
STW1000A A:NO 2.5mm M10
STW1211B B:NC 10mm M12 x 1
2 signal slowdown and seating check, plunger type STD
  Product name Output mode Stroke Size
STD1210B B:NC 3.2mm M12 x 1
STD1211B B:NC 10mm M12 x 1
ST401 B:NC 3.2mm M12
