HW Water Cooler Series



Application:

CNC wire cutting machine
High speed spindle
Laser cutting machine
PCB drilling machine
Electrode cooling of spot welder
Plastic injection molding machine
Printing machines
Semiconductor manufacturing equipment
Medical instrument
Other industrial machines

Feature:

Precisely control temperature of industrial machines, improve production efficiency and reduce cost.
Uses stainless steel for water circuit.
Multi-safe devices are equipped to secure the operator and cooler safety.
No need for cooling water tower.

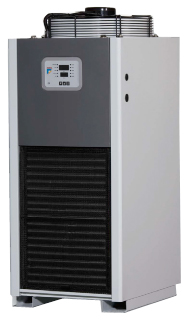

Specification: HWV – Vertical Type Without Water Tank
Item/Model HWV-250PS HWV-400PS HWV-600PS HWV-750PS HWV-900PS
Cooling
capacity		 KCAL/H
50/60 Hz		 840/1000 1400/1500 1700/2100 2600/3000 3200/3800
W
50/60Hz		 980/1170 1630/1750 1970/2450 2900/3500 3700/4400
BTU/H
50/60 Hz		 3380/4000 5600/6000 6700/8300 10000/12000 12800/15200
Temp.
controller		 A Fixed temperature control type (setting range 10~40°C)
B Differential temperature control type (tracing room/machine body temperature, setting range -10 ~ +10°C)
Use
range		 Ambiet temp. °C 10 ~ 40 °C
Water temp. °C 10 ~ 30 °C
Power source 3Φ 200 ~ 230V 50/60 Hz
Compressor / Fan motor W 500/50 668/180 860/180 1136/180 1450/180
Pump W 57 80 750 750 750
Max. flow rate L/min 27/31 32/38 58/75 58/75 58/75
Max. liquid lift M 3.1/4.3 3.8/5.4 28/40 28/40 28/40
Inlet pipe diameter PT 1/2″ 1″
Outlet pipe diameter PT 1/2″ 1″
Dimension
WDH mm		 360×472×687 575×430×1045
Item/Model HWV-1000PS HWV-2RPS HWV-3RPS HWV-4RPS HWV-5RPS
Cooling
capacity		 KCAL/H
50/60 Hz		 3750/4500 5000/6000 7500/9000 10000/12000 12500/15000
W
50/60Hz		 4350/5250 5820/6980 8720/10470 11630/13960 14540/17450
BTU/H
50/60 Hz		 15000/18000 20000/24000 30000/36000 40000/48000 50000/60000
Temp.
controller		 A Fixed temperature control type (setting range 10~40°C)
B Differential temperature control type (tracing room/machine body temperature, setting range -10 ~ +10°C)
Use
range		 Ambiet temp. °C 10 ~ 40 °C
Water temp. °C 10 ~ 30 °C
Power source 3Φ 200 ~ 230V 50/60 Hz
Compressor / Fan motor W 1700/180 2480/350 3350/350 4400/500 5500/500
Pump W 750 750 1080
Max. flow rate L/min 58/75 58/75 100/150
Max. liquid lift M 28/40
Inlet pipe diameter PT 1″ 3/4″
Outlet pipe diameter PT 1″ 3/4″
Dimension
WDH mm		 480×580×1340 500×732×1295 554×660×1535 1085×780×1400
12000BTU=1TON 1. Cooling capacity is based on 60Hz at ambient temperature 32XC and liquid temperature 22XC.
2. The maximum evaporator pressure resistant is 5kg/ cm2, please contact with us for higher pressure pump.
3. Please contact us for more special specification.
4. Design and specification are subject to change without prior notice.

Specification: HWH – Horizontal Type Without Water Tank
Item/Model HWH-250PS HWH-400PS HWH-600PS HWH-750PS HWH-900PS HWH-1000PS
Cooling
capacity		 KCAL/H
50/60 Hz		 840/1000 1250/1500 1700/2100 2600/3000 3200/3800 3750/4500
W
50/60Hz		 980/1170 1450/1750 1970/2450 2900/3500 3700/4400 4350/5250
BTU/H
50/60 Hz		 3300/4000 5000/6000 6700/8300 10000/12000 12800/15200 15000/18000
Temp.
controller		 A Fixed temperature control type (setting range 10~40°C)
B Differential temperature control type (tracing room/machine body temperature, setting range -10 ~ +10°C)
Use
range		 Ambiet temp. °C 10 ~ 40
Water temp. °C 10 ~ 30
Power source 3Φ 200 ~ 230V 50/60 Hz
Compressor / Fan motor W 500/50 820/50 1180/95 1450/125 1700/125
Heat dissipation Air cooled
Pump W 57 80 135
Max. flow rate L/min 27/31 32/38 45/52
Max. liquid lift M 3.1/4.3 3.8/5.4 4.6/6.5
Inlet pipe diameter PT 3/4″
Outlet pipe diameter PT 3/4″
Dimension
WDH mm		 540×400×340 630×420×420 630×480×520 710×540×570 710×540×570
12000BTU=1TON 1. Cooling capacity is based on 60Hz at ambient temperature 32XC and liquid temperature 22XC.
2. The maximum evaporator pressure resistant is 5kg/ cm2, please contact with us for higher pressure pump.
3. Please contact us for more special specification.
4. Design and specification are subject to change without prior notice.

Specification: HWK – Vertical Type With Water Tank
Item/Model HWK-50PTS HWK-250PTS HWK-400PTS HWK-600PTS HWK-750PTS HWK-900PTS
Cooling
capacity		 KCAL/H
50/60 Hz		 450/500 840/1000 1400/1500 1700/2100 2600/3000 3200/3800
W
50/60Hz		 525/580 980/1170 1630/1750 1980/2450 2900/3500 3700/4400
BTU/H
50/60 Hz		 1800/2000 3360/4000 5800/6000 6800/8400 10000/12000 12800/15200
Temp.
controller		 A Fixed temperature control type (setting range 10~40°C)
B Differential temperature control type (tracing room/machine body temperature, setting range -10 ~ +10°C)
Use
range		 Ambiet temp. °C 10 ~ 40°C
Water temp. °C 10 ~ 30°C
Power source 3Φ 200 ~ 230V 50/60 Hz
Compressor / Fan motor W 460/56 460/50 460/95 740/95 1136/180 1450/180
Pump Max. flow rate L/min 2/3.5 40/50
Max. liquid lift M 30/38 28/40
Inlet pipe diameter PT 1/2″ 3/4″
Outlet pipe diameter PT 1/2″ 3/4″
Water tank capacity 7L 13L 35L
Dimension
WDH mm		 367×508×567 370×483×925 425×500×1100 430×640×1295
Item/Model HWK-1000PTS HWK-2RPTS HWK-3RPTS HWK-4RPTS HWK-5RPTS
Cooling
capacity		 KCAL/H
50/60 Hz		 3750/4500 5000/6000 7500/9000 10000/12000 12500/15000
W
50/60Hz		 4350/5250 5800/7000 8700/10500 11600/14000 14500/17500
BTU/H
50/60 Hz		 15000/18000 20000/24000 30000/36000 40000/48000 50000/60000
Temp.
controller		 A Fixed temperature control type (setting range 10~40°C)
B Differential temperature control type (tracing room/machine body temperature, setting range -10 ~ +10°C)
Use
range		 Ambiet temp. °C 10 ~ 40°C
Water temp. °C 10 ~ 30°C
Power source 3Φ 200 ~ 230V 50/60 Hz
Compressor / Fan motor W 1700/180 2480/350 3350/350 4400/500 5500/500
Pump Max. flow rate L/min 40/50 60/80 80/130
Max. liquid lift M 28/40 36/53
Inlet pipe diameter PT 3/4″ 1″ 3/4″
Outlet pipe diameter PT 3/4″ 1″ 3/4″
Water tank capacity 35L 22L 40L 90L
Dimension
WDH mm		 430×640×1295 550×770×1295 553×677×1430 1085×735×1400
12000BTU=1TON 1. Cooling capacity is based on 60Hz at ambient temperature 32XC and liquid temperature 22XC.
2. The maximum evaporator pressure resistant is 5kg/ cm2, please contact with us for higher pressure pump.
3. Please contact us for more special specification.
4. Design and specification are subject to change without prior notice.
