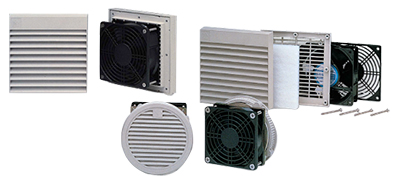

FU Ventilation Filter Series
Application:
|
| Control box for every kind of machines. |
|
Feature:
|
| ABS material is Non-flammable and UV-resistant. |
| Material of filter is used the exported Nylon synthetic resin. Rate of dust resistance AFI 80% (AFI=JAPAN AIR FILTER INSTITUDE). |
| 45Xangle design of the ventilator exit is new and good-looking. |
| Effectively decrease the temperature in the control cabinet. |
| Water-resistance and rust resistance. |
| Ensures the heat letting out of controller and electronic parts, lengthens the life of the parts. |
|

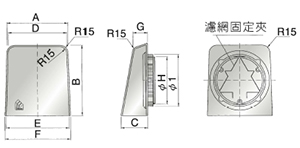

Specification of the ventilation filter unit:
|
| Item/Model |
Sizes
mm |
Air flow
m3/min |
Air speed
m/sec |
Damage area
mm/Aq |
Weight
g |
| FU-9701A |
X105 6 |
8.00 |
1.5 |
2.5 ~ 20 |
69 |
| FU-9702A |
X120 6 |
12.00 |
1.5 |
2.5 ~ 20 |
80 |
| FU-9703A |
158 158 22 |
25.0 |
2.0 |
3.1 ~ 40 |
216 |
| FU-9704A |
208 208 25 |
50.0 |
2.0 |
3.1 ~ 40 |
330 |
|
|
| 1. Material: ABS resin 94V-0, UL fire resistance. , 2. Protection class: IP44, dust resistance rate 80%. , 3. Use area: indoor at temperature -10XC ~ +55XC. |
|
|
Specification of the ventilation filter unit:
|
|
| Item/Model |
Sizes
mm |
Air flow
m3/min |
Air speed
m/sec |
Damage area
mm/Aq |
Weight
g |
| FU-9701B |
□105 × 6 |
8.00 |
1.5 |
2.5 ~ 20 |
69 |
| FU-9702B |
□105 × 6 |
12.00 |
1.5 |
2.5 ~ 20 |
80 |
| FU-9703B |
158 × 158 × 22 |
25.0 |
2.0 |
3.1 ~ 40 |
216 |
| FU-9704B |
208 × 208 × 25 |
50.0 |
2.0 |
3.1 ~ 40 |
330 |
|
|
|
1. AES is weather resistance resin and it is used for outdoors, promote protection and prevent defaults caused by bad weather.
2. Protection class: IP54
3. Use area: indoor at temperature -10ºC ~ +55ºC. |
Specification of the cooling fan:
|
| Item/Model |
Rated
voltage
VAC |
Air flow
(m/m) |
Air speed
(m/sec) |
Damage
area
mm/Aq |
Weight
g |
Specification of fans part |
Size
mm |
Rated
voltage
VAC |
Rated
current
A |
Locked
current
A |
Input
power
W |
Air pressure
mm/H2O |
Rotary speed
rpm |
Noise
dB |
Weight
g |
Bearing |
| FU-9701C |
110 |
0.68 |
1.5 |
2.5~20 |
346 |
808025 |
120 |
0.140 |
0.150 |
14 |
5.50 |
3000 |
35 |
260 |
Sleeve
bearing |
| 220 |
230 |
0.070 |
0.090 |
| FU-9702C |
110 |
0.87 |
1.5 |
2.5~20 |
380 |
929225 |
120 |
0.140 |
0.150 |
6.50 |
2900 |
36 |
280 |
| 220 |
230 |
0.070 |
0.080 |
| FU-9703C |
110 |
3.00 |
2.0 |
3.1~40 |
778 |
12012038 |
120 |
0.190 |
0.200 |
9.00 |
3100 |
47 |
530 |
Ball
bearing |
| 220 |
230 |
0.090 |
0.100 |
| FU-9704C |
110 |
5.80 |
2.0 |
3.1~40 |
1265 |
172150151 |
120 |
0.440 |
0.580 |
14.50 |
3100 |
55 |
900 |
| 220 |
230 |
0.230 |
0.310 |
|
|
| 1. |
Protection class: IP44, dust resistance rate 80%. |
|
| 2. |
Use area: indoor temperature -10XC ~ +55XC. |
| 3. |
The fan use aluminum alloy frame and 94V-0 construction plastic impeller. |
| 4. |
For order, please mention the power voltage code: 1=AC 110V 2=AC 220V, ie.: FU-9702C-1; |
|
