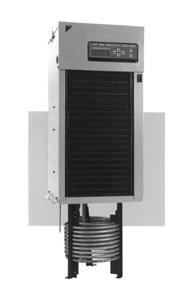

OIL COOLING UNIT : NEW AKJ SERIES
Features
- This series can widely be used as oil cooling of cutting liquid or grinding liquid because of many abundant types and advanced function.
- Many abundant types
- Many varieties of machines – three types at present (1/2, 1, 2HP) =>new four types in feature(1/2, 1, 2, 3HP)
- Standardization of cooling and warming items. (with heater and timer)
- Expansion of usable range
- Viscosity range – between VG2 to VG32
- Room temperature range (Top in use) – 10~40C – 5~45C
- Standard equipment with highly sophisticated systems abundant. (new-microcomputer-controlled printed circuit board, new indicated printed board)
- Digital set and digital display – timer function, thermometer function
- Capability of set temperature through instruction with a machine tool (interface)
- Capability of pair operation (synchronized and running between two units)
Applications
Cooling of lubricating oil, cutting liquid, grinding liquid for machine tools.
|
HP
|
1/2
|
1
|
2
|
3
|
|
|
Model
|
AKJ(H)56
|
AKJ(H)106
|
AKJ(H)206
|
AKJ(H)306
|
|
|
Cooling Capacity (50Hz/60Hz)
|
W
|
1250/1400
|
2240/2500
|
4500/500
|
8000/9000
|
|
Electric Heater (AKJH)
|
kW
|
1
|
1
|
2
|
4
|
|
Dimensions
(W x D x H) |
mm
|
360x390x610 (960) |
360x390x760 (1110)
|
475x545x995 (1415)
|
620x625x950
(1370) |
|
Adjustment Function
|
Temp. Control
|
Synchronization / Fix changeable digital controller
|
|||
|
Thermometer
|
Digital Indication (standardization)
|
||||
|
Timer
|
Weekly Timer (stardardization)
|
||||
|
Refrigerant gas
|
R22(HCFC type)
|
||||
|
Operation Range
|
Room Temp. |
5~45C
|
|||
| Fluid Temp. |
5~50C
|
||||
| Fluid Viscosity |
4~200mm2/s(VG32)
|
||||
|
Usable Oil
|
Water-soluble – cutting / grinding fluid, Cutting / grinding oil, Lubricating oil, Hydraulic oil
|
||||
|
Weight
|
kg
|
37
|
45
|
90
|
130
|
